NXP4330Q-A

Overview.

Automotive Multimedia 32bit Quad core Application Processor w/ AEC-Q100 qualified

NXP4330Q-A: AEC-Q100 qualified, 32bit Quad-Core, High Performance, Advanced 3D Graphics, Full-HD Multimedia Video, ARM® Cortex®-A9 Core

NXP4330Q-A is a system-on-a-chip (SoC) based on the 32-bit RISC processor for Automotive application (AEC-Q100 certified), Designed with the 28 nm low power process, features of NXP4330A include:

  • • Cortex-A9 Quad core CPU
  • • Highest memory bandwidth
  • • Full HD display
  • • 1080p 60 frame video decoding and 1080p 30 frame encoding hardware
  • • 3D graphics hardware
  • • High-speed interfaces such as eMMC4.5 and USB 2.0

NXP4330Q-A uses the Cortex-A9 quad core, which is 50 % overall performance higher than Cortex-A8 core and its speed is 1.0GHz. It provides 6.4 GB/s memory bandwidth for heavy traffic operations such as 1080p video encoding and decoding, 3D graphics display and high resolution image signal processing with Full HD display. The application processor supports dynamic virtual address mapping, which helps software engineers to fully utilize the memory resources with ease.
NXP4330Q-A provides the best 3D graphics performance with wide range of APIs, such as OpenGL ES1.1, 2.0.Superior 3D performancefully supports Full HD display.The native dual display, in particular, supports Full HD resolution of a main LCD display and 1080p 60 frame HDTV display throughout HDMI, simultaneously. Separate post processing pipeline enables NXP4330Q-A to make a real display scenario.

Diagram.

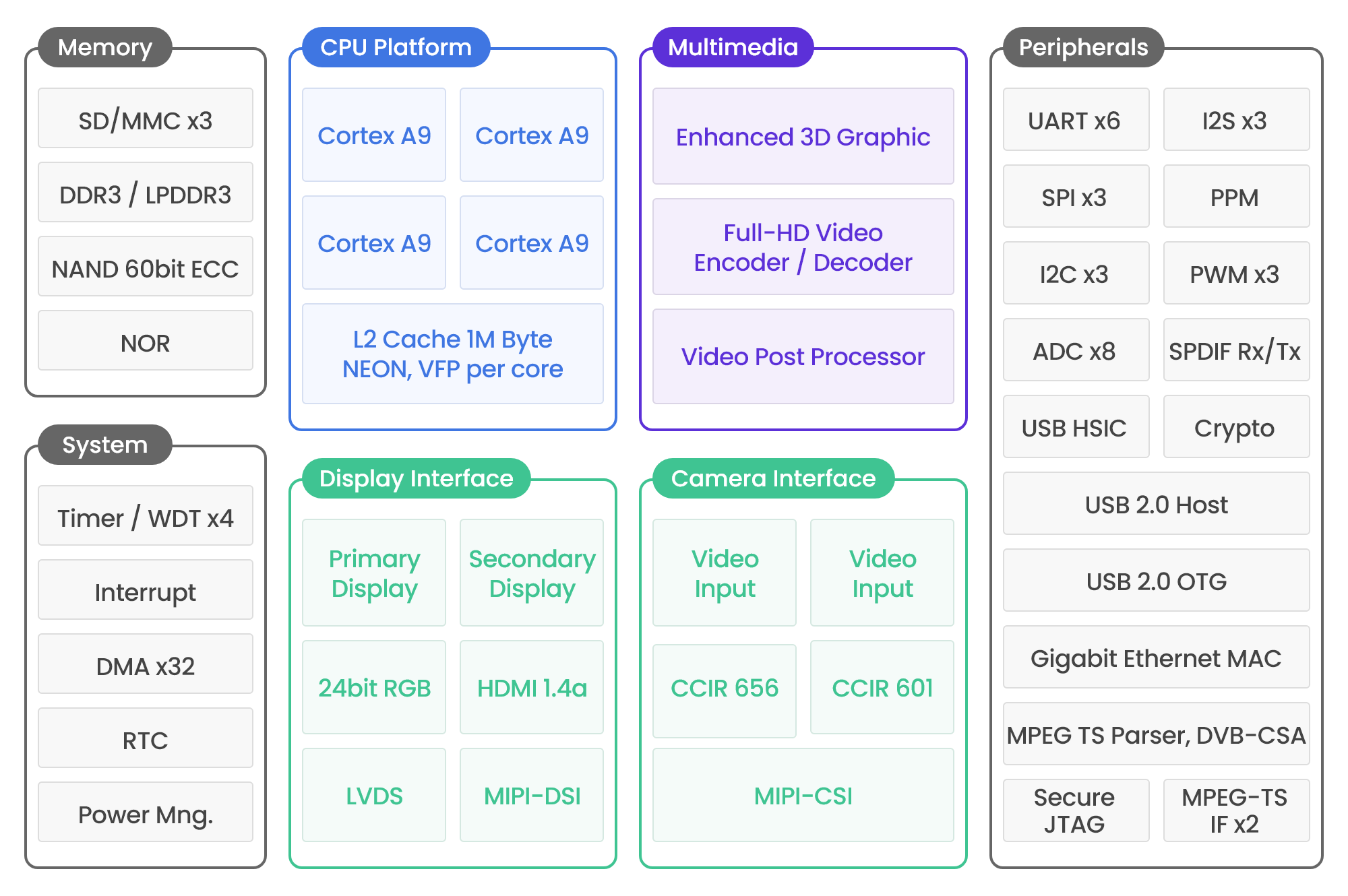

NXP4330Q-A Block diagram

Features.

CPU

  • • Cortex-A9 Quad Core @ 1.0Ghz w/ 32Kbyte I-Cache, 32Kbyte D-Cache per core
  • • 1MByte L2 Cache
  • • VFP(Vector float-point Processor), Neon Processor per core

System Controller

  • • 32 channels DMA, Interrupt Controller
  • • Clock & Power management for Normal, Idle, Stop and suspend to RAM (Deep Sleep)
  • • 4 channels Timer/Watchdog Timer
  • • RTC

Memory/Storage Controller

  • • System Memory : Supports LPDDR2/3 and DDR2/3 up to 4Gbytes @ 933Mhz(T.B.D)
  • • SRAM, ROM and NOR flash controller
  • • SLC/MLC NAND Flash Controller w/ up to 60bit ECC
  • • Supports 3 independent SD/MMC/eMMC controller

FHD Multi-format video codec

  • • FHD Multi-format video decoder
  • • FHD H.264 video encoder

3D Graphic

  • • Enhanced 3D graphic processor
  • • Supports OpenGL|ES 1.1/2.0, Open VG

Display Controller & Video Post-processor

  • • Supports Multiple display up to 2 separate devices 1920x1280@60hz
  • • Supports 24bit RGB, i80 I/F, LVDS, HDMI 1.4a w/HDCP 1.4 compliant, MIPI-DSI
  • • Supports 3D De-interlace, Fine video scalar and Color space converter

Video Input Processor

  • • Supports x3 8bit BT656/601 format
  • • Supports MIPI-CSI2

Connectivity

  • • Supports Gigabit Ethernet MAC
  • • Supports the latest USB 2.0 HSIC, USB 2.0 Host and USB 2.0 OTG
  • • Supports MPEG-TS parser with DVB-CSA for TV application

Peripherals

  • • 6x UART, 3x SPI, PPM, 3x I2C, 3x PWM, 2x MPEG-TS
  • • 3x I2S, SPDIF Rx/Tx, 2x PDM for glueless interface w/ Digital MIC
  • • 8x 12bit general purpose ADC

Security

  • • ARM TrustZone : TZPC, TZASC and TZMA
  • • Hardware crypto accelerator : DES/TDES, AES, SHA, MD5 and PRNG
  • • Supports Secure boot and Secure JTAG

Package

  • • 17x17mm body size, 513 FCBGA, 0.65mm pitch

AEC-Q100 certified
