NXB110

Overview.

Mobile TV RF and Baseband one-chip solution

NXB110: Mobile TV RF and Baseband one-chip solution for T-DMB, DAB, FM and ISDB-T 1-seg

NXB110 is a highly integrated SoC (System-on-Chip) TDMB/DAB/ISDB-T and FM receiver. This device is composed of high performance RF front-end and demodulation part in a small-size single chip. This device supports various interfaces such as I2C, TSIF, SPI, HPI and EBI2 to make interface with external devices more flexible. In addition, NXB110 can reduce external component with on-chip DCDC converter and LDO. With good sensitivity, high linearity, wide dynamic range, and low power consumption, NXB110 is the best solution for TDMB/DAB/ISDB-T and FM application.

Diagram.

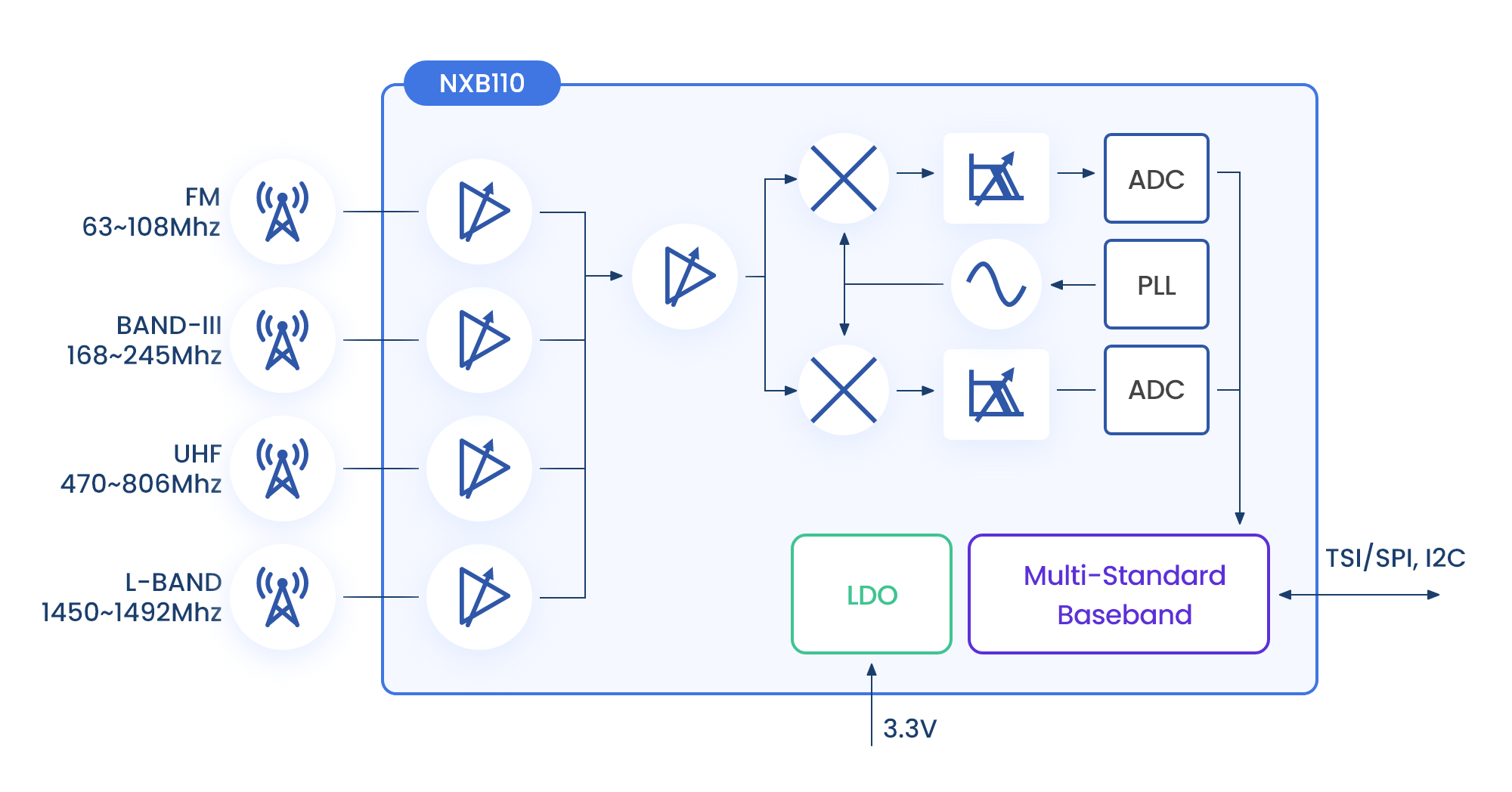

NXB110 Block diagram

Features.

Highlights

  • • Support Mobile TV : T-DMB, DAB, FM and ISDB-T 1-seg
  • • All DAB transmission mode (I, II, III and IV) support
  • • Auto-detect of transmission mode and guard interval
  • • Automatic RF Channel setting, channel acquisition and re-acquisition
  • • Support MRC diversity reception for high performance with dual antenna
  • • On-chip DCDC converter and LDO for minimal external component

Host Interface

  • • Variable HOST interface support SPI, HPI, I2C and EBI2
  • • MPEG TS Interface support TSIF

Package

  • • Variable HOST interface support SPI, HPI, I2C and EBI2
  • • MPEG TS Interface support TSIF
