NXBT100

Overview.

Bluetooth 4.0 + EDR module including all external component for cost-effective application

NXBT100: Bluetooth module for Bluetooth 4.0 + EDR, Coexistence for IEEE802, WBS/PLC for better audio quality.

NXBT100 Bluetooth 4.0+EDR module is designed for industrial hands-free radios and data communication. It integrates all components BT core IC, filter and LDO for minimal external components.

Diagram.

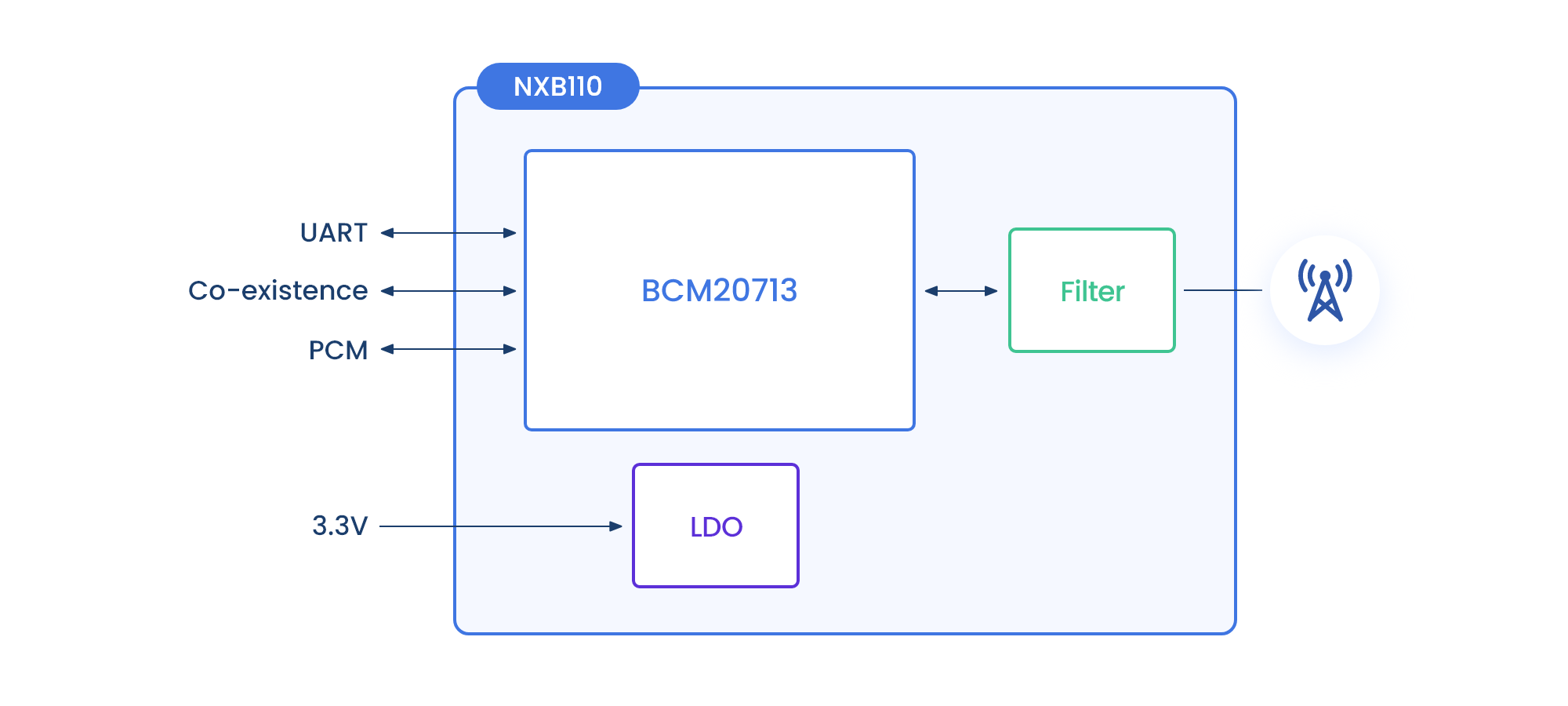

NXB110 Block diagram

Features.

Bluetooth 4.0 + EDR

  • • Supports Multipoint operation up to 7 active slaves
  • • Supports Scatternet operation up to 4 active piconets
  • • Supports Wide-band Speech (WBS) over PCM and Packet Loss Concealment (PLC) for better audio quality Support for 802.11 coexistence

Interface

  • • Supports maximum Bluetooth data rates over HCI UART interface
  • • Supports for 3-wire coexistence (IEEE802.11)
  • • Supports I2S for PCM input and output

Power Saving Modes

  • • Bluetooth standard Hold and Sniff
  • • Deep sleep modes and regulator shutdown

Size

  • • 11 x 13 x 2.0mm
